Wire Spiral Hydraulic Hose EN856 R13
Inner tube: Neoprene

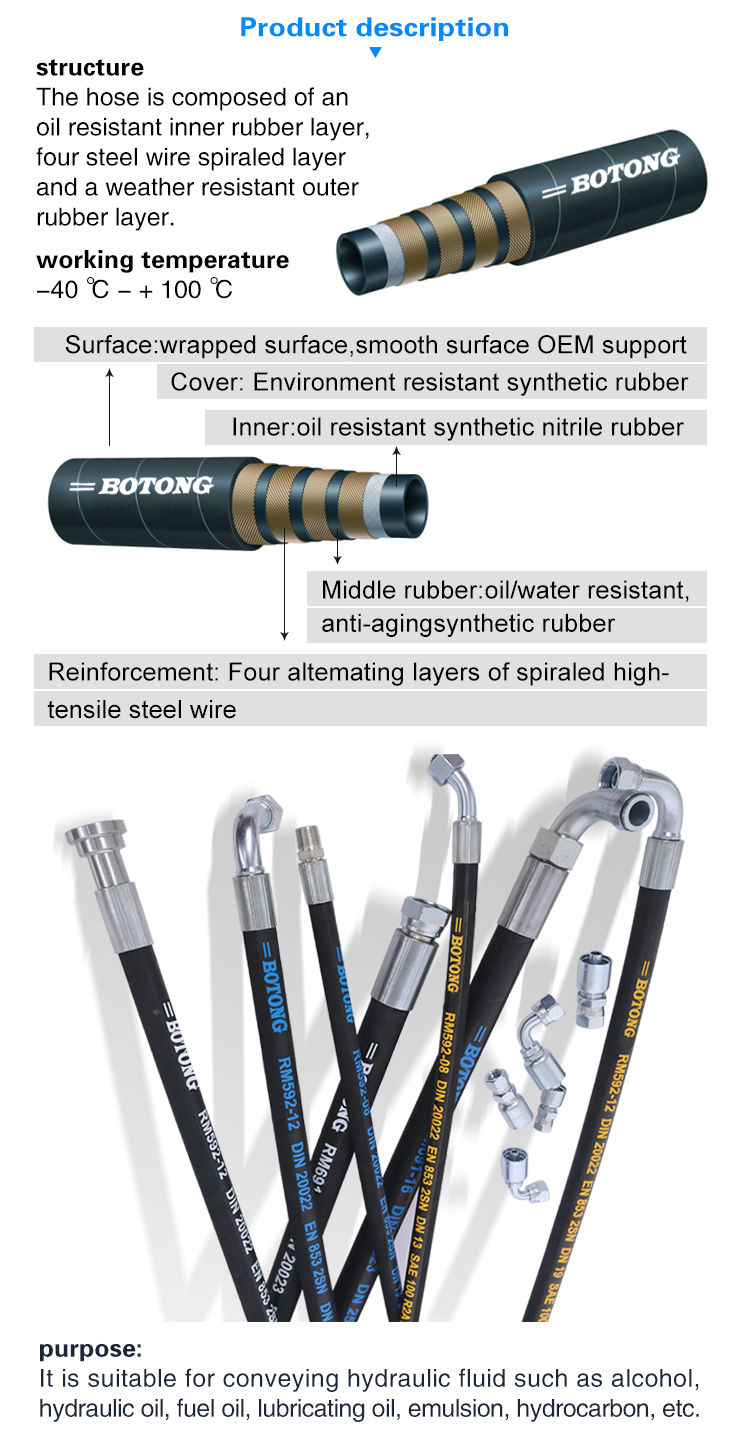

Reinforcement: Four alternating layers of spiralled high-tensile steel wire (sizes 3/4"and 1") and six alternating layers of spiralled high tensile steel wire (sizes 11/4", 11/2" and 2").
Cover: Black Neoprene.
Temperature Range: -40°F to 250°F (-40°C to 121°C)
Applicable standards: GB/T 10544 R13, EN 856 R13, SAE J517 R13
Application: Very high pressure applications subject to surge or flexing such as construction equipment, mining and the high-performance industrial market.
| BT-R13 Technical Specifiction ISO 3862-1 R13 SAE 100 R13 EN 856 R13 | |||||||||||||
| Product Number | Hose ID | W.D | C.O.D | Max W.P. | Min B.P | Min B.R. | Weight | ||||||
| Dash | mm | in | Min mm | Max mm | Min mm | Max mm | Min mm | Max mm | PSI | PSI | mm | Kg/m | |
| R13-12-19 | 12 | 19.0 | 3/4 | 18.6 | 19.8 | 28.2 | 29.8 | 31.0 | 33.2 | 5076 | 20305 | 240 | 1.62 |
| R13-16-25 | 16 | 25.0 | 1 | 25.0 | 26.4 | 34.9 | 36.4 | 37.6 | 39.8 | 5076 | 20305 | 300 | 2.62 |
| R13-20-32 | 20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 45.6 | 48.0 | 48.3 | 51.3 | 5076 | 20305 | 420 | 3.62 |
| R13-24-38 | 24 | 38.0 | 1 1/2 | 37.7 | 39.3 | 53.1 | 55.5 | 55.8 | 58.8 | 5076 | 20305 | 500 | 4.62 |
| R13-32-51 | 32 | 51.0 | 2 | 50.4 | 52.0 | 66.9 | 69.3 | 69.5 | 72.7 | 5076 | 20305 | 630 | 5.62 |
| Remark:1MPa=145PSI | |||||||||||||
