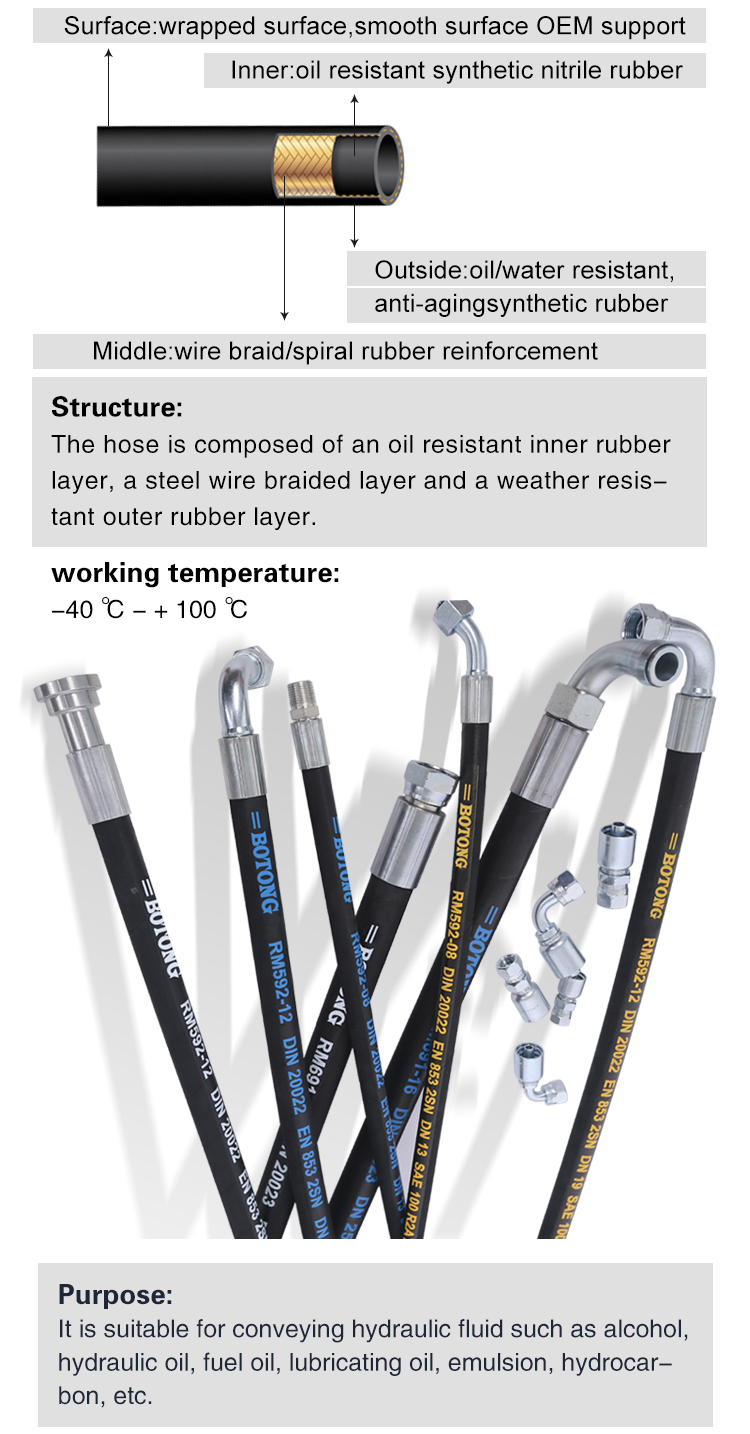

Wire Braid Hydraulic Hose SAE J517 R17
Inner tube: Nitrile
Reinforcement: One braid of high-tensile steel wire(sizes 1/4,3/8 and 1/2)and two braids of high-tensile steel wire(sizes 5/8,3/4 and 1)
Cover: Black Neoprene Blend
Temperature Range: －40 Centigrade to 100 Centigrade
Application: High pressure hydraulic applications and to replace 100R1 where higher pressures and a more flexible hose is required.
| BT-R17 Technical Specifiction ISO 11237-1 R17 SAE 100 R17 | ||||||||||||||
| Product Number | Hose ID | W.D. | C.T. | C.O.D | Max W.P. | Min B.P | Min B.R. | Weight | ||||||
| Dash | mm | in | Min mm | Max mm | Max mm | Min mm | Max mm | Max mm | PSI | PSI | mm | Kg/m | ||
| R17-03-05 | -3 | 5.0 | 3/16 | 4.6 | 5.4 | 10.1 | 0.8 | 1.5 | 11.6 | 3045 | 12180 | 45 | 0.18 | |
| R17-04-06 | -4 | 6.3 | 1/4 | 6.2 | 7.0 | 11.0 | 0.8 | 1.5 | 13.2 | 3045 | 12180 | 50 | 0.20 | |
| R17-05-08 | -5 | 8.0 | 5/16 | 7.7 | 8.5 | 13.0 | 0.8 | 1.5 | 15.0 | 3045 | 12180 | 55 | 0.23 | |
| R17-06-10 | -6 | 10.0 | 3/8 | 9.3 | 10.1 | 15.0 | 0.8 | 1.5 | 17.0 | 3045 | 12180 | 65 | 0.29 | |
| R17-08-13 | -8 | 12.5 | 1/2 | 12.3 | 13.5 | 18.8 | 0.8 | 1.5 | 21.1 | 3045 | 12180 | 90 | 0.38 | |
| R17-10-16 | -10 | 16.0 | 5/8 | 15.5 | 16.7 | 23.6 | 0.8 | 1.5 | 25.9 | 3045 | 12180 | 100 | 0.64 | |
| R17-12-19 | -12 | 19.0 | 3/4 | 18.6 | 19.8 | 27.7 | 0.8 | 1.5 | 30.3 | 3045 | 12180 | 120 | 0.80 | |
| R17-16-25 | -16 | 25 | 1 | 25.0 | 26.4 | 35.6 | 0.8 | 2.2 | 38.6 | 3045 | 12180 | 150 | 1.28 | |
| Remark:1MPa=145PSI | ||||||||||||||
